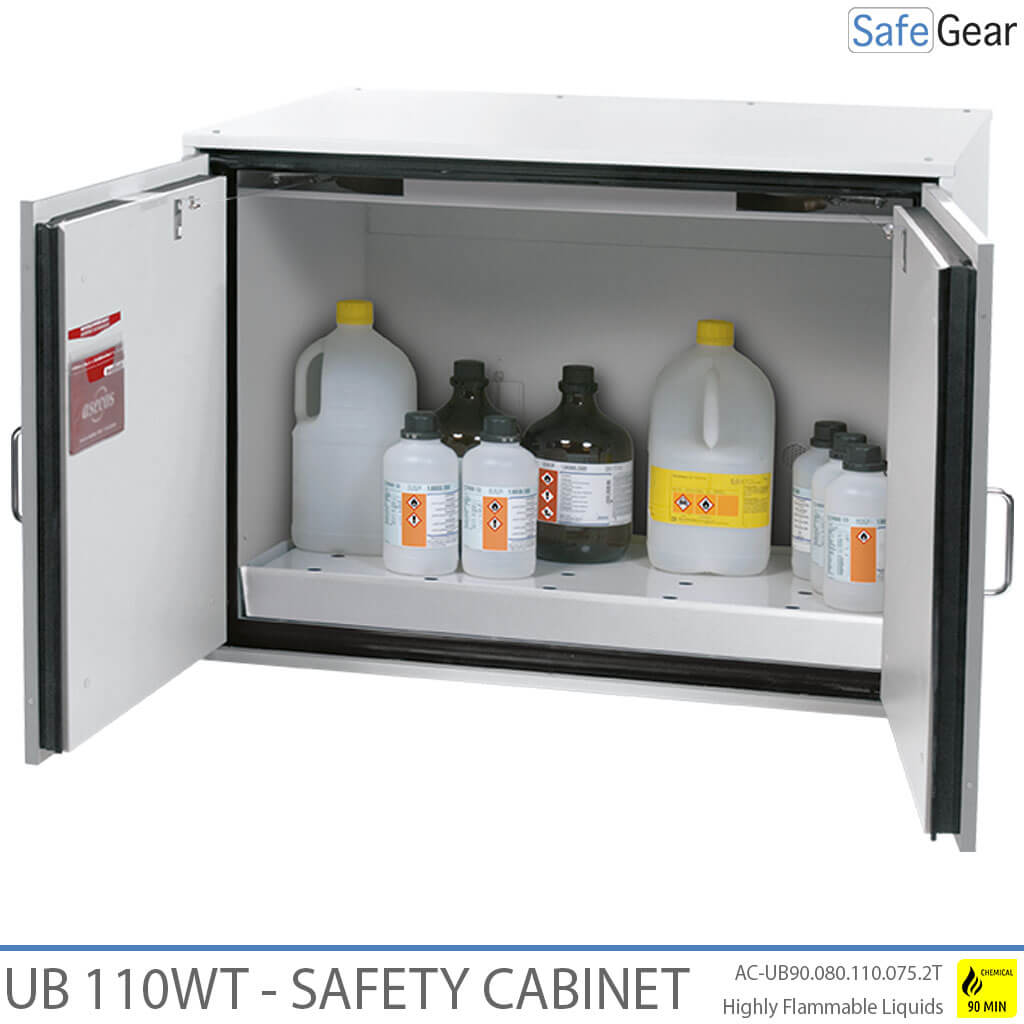

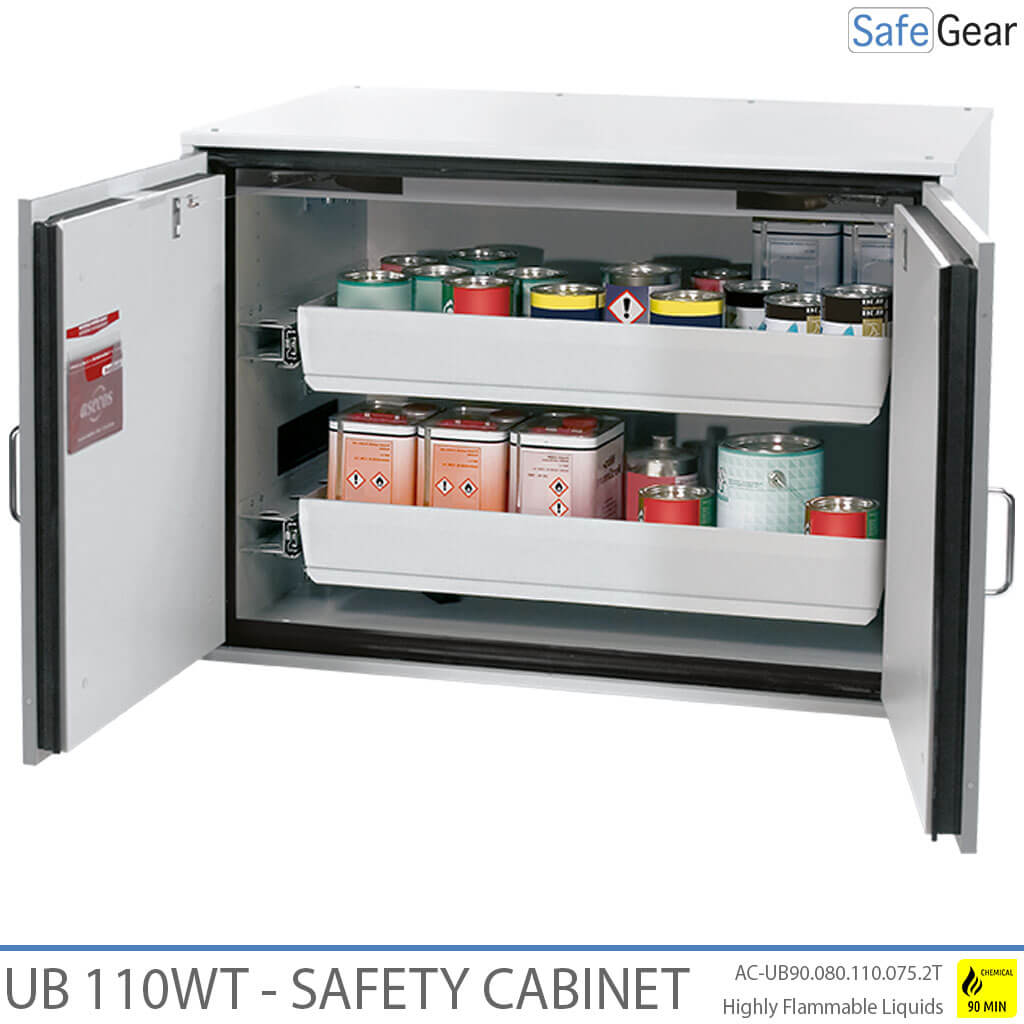

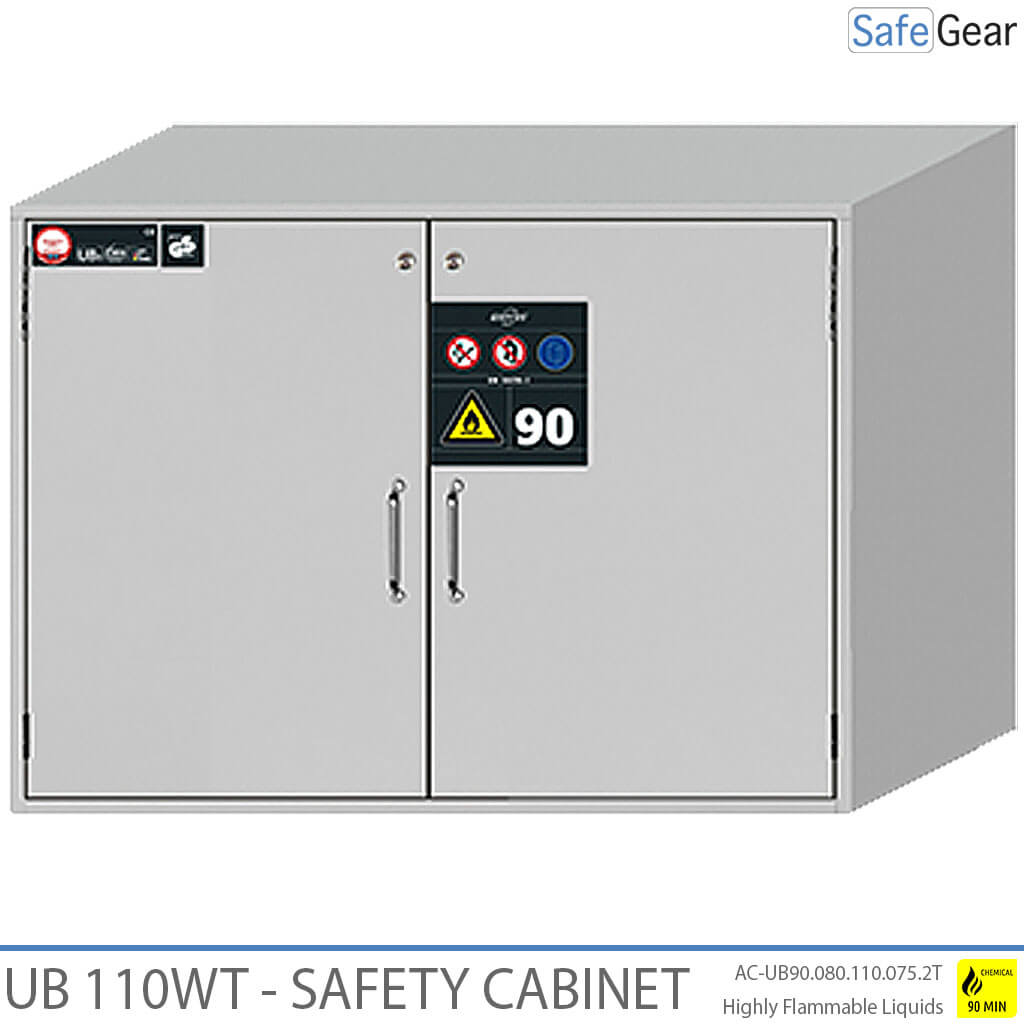

UB 110WT - Chemical Safety Cabinet (430) - Fire test 90 min - Wing Doors
AC-UB90.080.110.075.2T
This is a fire-rated chemical safety cabinet for the secure storage of flammable and hazardous substances in laboratories, workshops and industrial areas. Built to contain dangerous goods and limit fire risk, it helps keep workplaces safe and compliant. The range covers underbench and tall cabinets in a choice of capacities and fire ratings.
Fire-rated storage for hazardous substances
Designed to safely store flammable liquids and dangerous chemicals, the cabinet provides certified fire protection to keep contents and surroundings safe in the event of a fire. Shelf, drawer and wing-door layouts suit different storage needs, and underbench models fit neatly into lab and workshop benches. A chemical safety cabinet is an essential part of safe, compliant hazardous-material storage.
EN 14470-1 Type 90 – A safety storage cabinet for flammable liquids, tested to contain its contents for 90 minutes in a fire.
Gives time for evacuation and fire-service response in laboratories, workshops and industrial premises.
Contact us for price
Contact us for price
Contact us for pricing and availability
Delivery time
1-2 weeksInstallation
Prices shown are estimates only. Final pricing depends on factors such as location, accessibility, stairs, and weight.
More about delivery and InstallationSize Chart
| Model |
External (Height x Width x Depth) |
Internal (Height x Width x Depth) |
Weight | Price | Model |
|---|---|---|---|---|---|
| UB 5 - Chemical Safety Cabinet (106 L) - Fire test 90 min - Drawers | 600 X 593 X 574 mm | 502 X 470 X 452 mm | 120 kg | Contact us for price | |
| UB 60 - Chemical Safety Cabinet (106 L) - Fire test 90 min - Wing Doors | 600 X 593 X 574 mm | 502 X 470 X 452 mm | 120 kg | Contact us for price | |
| UB 4 - Chemical Safety Cabinet (174 L) - Fire test 90 min - Drawers | 600 X 893 X 574 mm | 502 X 771 X 452 mm | 140 kg | Contact us for price | |
| UB 90 - Chemical Safety Cabinet (175 L) - Fire test 90 min - Wing Doors | 600 X 893 X 574 mm | 502 X 771 X 452 mm | 140 kg | Contact us for price | |
| UB 110 - Chemical Safety Cabinet (222 L) - Fire test 90 min - Wing Doors & Drawers | 600 X 1102 X 574 mm | 502 X 979 X 452 mm | 180 kg | Contact us for price | |
| UB 110W - Chemical Safety Cabinet (222 L) - Fire test 90 min - Wing Doors | 600 X 1102 X 574 mm | 502 X 979 X 452 mm | 180 kg | Contact us for price | |
| UB 2 - Chemical Safety Cabinet (222 L) - Fire test 90 min - Drawers | 600 X 1102 X 574 mm | 502 X 979 X 452 mm | 180 kg | Contact us for price | |
| UB 3 - Chemical Safety Cabinet (222 L) - Fire test 90 min - Drawers | 600 X 1102 X 574 mm | 502 X 979 X 452 mm | 180 kg | Contact us for price | |
| UB 1 - Chemical Safety Cabinet (290 L) - Fire test 90 min | 600 X 1402 X 574 mm | 502 X 1279 X 452 mm | 230 kg | Contact us for price | |
| UB 140 - Chemical Safety Cabinet (290 L) - Fire test 90 min - Wing Doors & Drawers | 600 X 1402 X 574 mm | 502 X 1279 X 452 mm | 230 kg | Contact us for price | |
| UB 110WT - Chemical Safety Cabinet (430) - Fire test 90 min - Wing Doors | 800 X 1102 X 752 mm | 701 X 979 X 626 mm | 200 kg | Contact us for price |
Questions & Answers
Common questions about this product, from our Knowledge Base.
Which burglary grade should I choose to insure cash & valuables?
Match the grade to the cash and valuables you need to store and to what your insurer requires. As a guide: S1/S2 and Grade 0–I for homes and small business, Grade II and above for higher sums. Always confirm the covered figure with your own insurer.
I forgot the code to my safe. Can you help me?
For security reasons neither SafeGear nor the lock manufacturer holds a master code. If the door is open the code can be reset using your lock manual; if it is locked and no emergency key was supplied, a locksmith must open the safe, which usually destroys it.
How can I bolt the safe myself?
You can bolt your safe following 8 simple steps. Read the article for the full description. If you're bolting the safe inside a wardrobe with a wooden back, we strongly recommend that you cut a hole in the back corresponding to the size of the safe in order to push the safe directly up against the wall.
How can I get an extra copy of the key for my safe?
You can ask a local locksmith to make a copy if you still have a key.
If you lost all your keys to the safe, it will depend on whether your door is open:
1) OPEN door - you can replace the entire safe lock with a new lock.
2) LOCKED door - no easy solution. A professional would have to either pick the safe lock (not easy!) or break into the safe to recover any valuables. The exact approach would depend on the security level of your safe but the safe will be destroyed and you would have to replace it.
How many bolts are included with my safe?
One expansion bolt is always included for anchoring the safe to the floor. You can buy additional bolts in any hardware store for additional anchoring to the wall.
Recommended anchor is M12/200mm (marked as 12/100)
How should I store my chemicals?
We advise you to store your chemicals in chemical storage safes in order to have a secure workplace.
I have an electronic lock. How often do I have to change the battery?
It depends on how often you use the electronic safe lock. In most cases, the battery will last 1-2 years.
Install a safe: Can you help me with the installation of my safe?
Yes! Safegear offers a Delivery & Installation for your recently bought safe. The cost depends on various factors related to the safe (weight and size) and the place where it is going to be installed (location, stairs etc.).
Install a safe: We have underfloor heating. Can we still bolt our safe to the floor?
If you have underfloor heating, we strongly recommend that you do not drill down into your floor.
Instead, look for other ways to secure your safe:
1) Bolt your safe to the wall instead of the floor.
2) Buy a heavy safe that is difficult for a thief to remove.
Obviously, you can combine the two options where you buy a heavy safe and bolt it to the wall for extra protection.
Install a safe: Where can I bolt the safe?
A safe can be bolted to the floor, the wall, or inside a wardrobe. Pay attention to the surface material - concrete or bricks offers a safer, much more solid fixing than wood.
Install a safe: Where should I place the safe?
If you use the safe on a daily basis, we recommend that you place it in an easily accessible location. Make sure you have checked the door opening dimension and opening side before placing/bolting the safe.
Install a safe: Why is bolting important?
Bolting prevents the safe from being moved by burglars, provides stability, and most insurance providers require correct installation.
My electronic safe lock is out of battery. How can I replace the battery?
All our safes with a codelock have emergency access:
1) an external contact on which an external 9V backup battery can be connected,
2) there is an emergency key, or
3) the battery can be changed from outside.
Safe Locks: Can I change the code of my electronic safe lock?
Yes, you can change the code, as long as you follow the manufacturer's manual.
Always change the code with the door open and test it several times before locking the safe.
Safe Locks: What is more secure? Key or Code Lock?
Both the Key and the Code Lock offer the same level of security.
Safe Locks: Which lock should I choose - Key or Code Lock?
Safes or security cabinets usually come with several locking options. Key and code locks offer the same security level - choose according to your preferences.
Most customer choose a code or electronic lock for their safe due to the convenience of not having to deal with a key. All our code locks offer emergency access if the battery runs out.
Safes: Do the external dimensions include the lock?
No, the lock is not included in the external dimensions of the safe. Measurements are without the lock handle and fitting. You can find the lock dimension in the product description under the attribute Lock depth.
Safes: What are the European Norms for Burglary Safe Ratings?
The EU norms for burglary-resistance safe ratings are values given by independent institutions recognized throughout Europe. The most important Burglary Standard is EN 1143-1.
What additional attributes do the chemical safety cabinets have?
A variety of chemical storage cabinet interior equipment is available, such as a bottom collection sump, drawers, and height-adjustable shelves. You can read more about the chemical safe accessory options under the product description.
What do I need to install my safe?
You need a quality drill and the corresponding drill bit (usually 10-12 mm diameter). Depending on the surface and fixing method, you'll either secure the safe with an expansion bolt (mechanical anchor) or bond an anchor in place using a two‑component (chemical) adhesive.
Why should I store chemicals in flammable safety cabinets?
The appropriate storage in chemical cabinets of flammable and dangerous substances protects workers' health in laboratories and industrial environments.
